Tell Me How To Make This

254 sats \ 15 comments \ @Fabs 5 Aug DIY

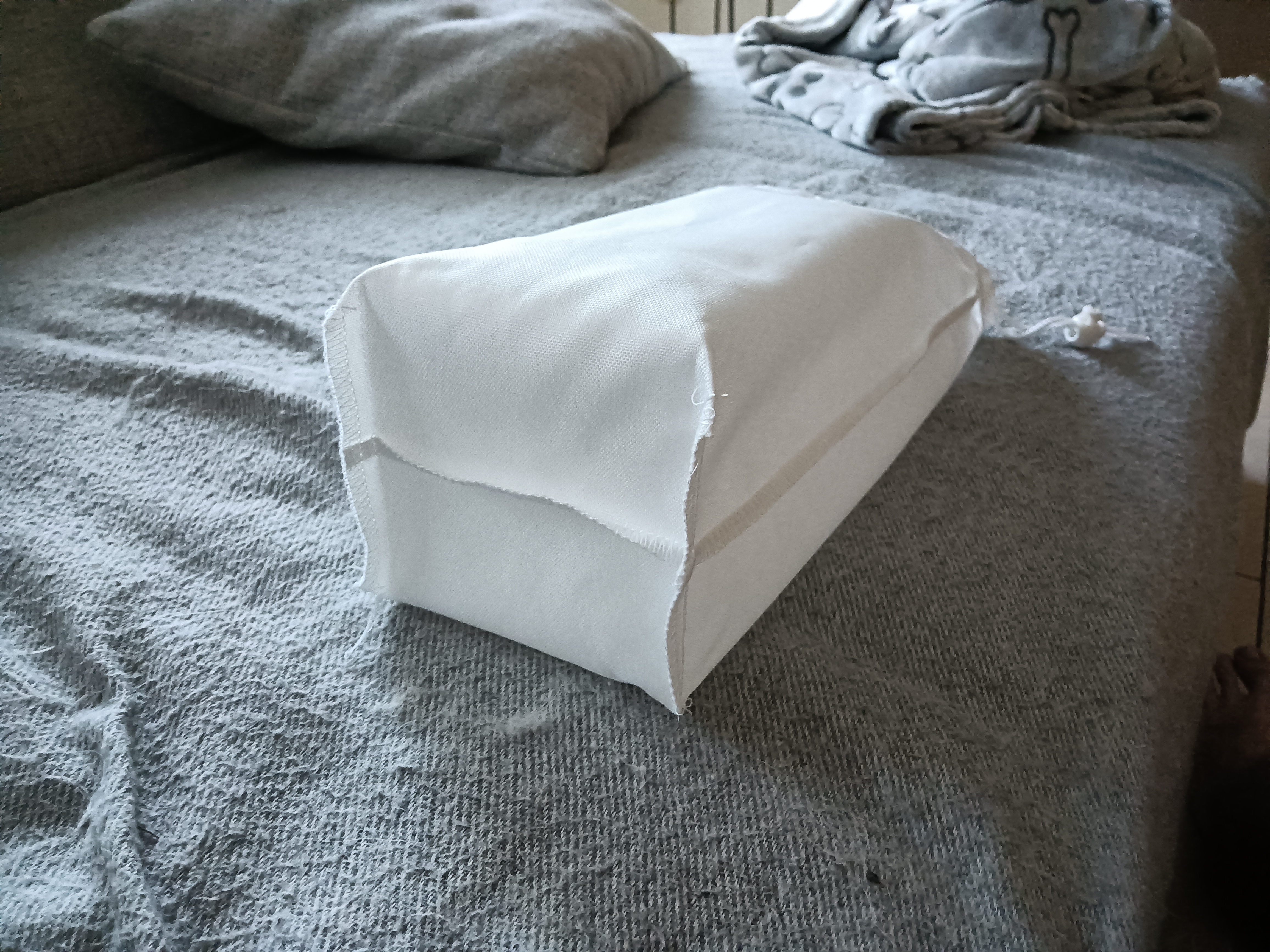

Create a blueprint for this item with the following measurements: 14.5 cm Length, 6.5 cm × 6.5 cm Base.

The bounty will be paid once I manage to make a working prototype as per the submitted blueprint.

https://m.stacker.news/43723

10,000 sats paid

Fabs's bounties

view all past bounties

10k sats \ 9 replies \ @supratic 6 Aug

based on the picture you provided... I can guess you will need x2 pieces of textile like this:

https://m.stacker.news/43851

You might need to provide more details, for a more precise blueprint. I get is for a bottle holder, do you have a pic and measures of the bottle that it will need to contain?

0 sats \ 8 replies \ @Fabs OP 6 Aug

The measures provided should be a tight fit for the bottle in question.

Can you provide a bit of context on the above? Especially on the left, or "bottom" side, and do I have to fold the two 3.25 cm parts onto each other before sewing?

0 sats \ 7 replies \ @supratic 6 Aug

yes correct, borders separated with the dotted lines indicate the areas where you'll be sewing, red lines indicate a cut in the cordura.

The right part is where I assume you''ll place a string for closing the bag, that's why is a bit larger.

0 sats \ 6 replies \ @Fabs OP 8 Aug

I'll probably get around to have a try at the above sometime tomorrow, I'll report back to ya.

105 sats \ 5 replies \ @Fabs OP 9 Aug

Alright: I noticed that it simply takes too much time and details while measuring and cutting out the above, whereas the "folded" type of bottom is A LOT faster and simpler to make, plus it gives it kind of a "crumbled" look, which I like.

Nonetheless: your submission seems to be closest.

0 sats \ 4 replies \ @supratic 9 Aug

Thanks, I'm glad it helped you find an easier way. So you saying you started directly sewing from the bottom? What was the cut blueprint? Can I see the final result?

69 sats \ 3 replies \ @Fabs OP 9 Aug

You want to see the folded bottom?

https://m.stacker.news/44634 https://m.stacker.news/44635

0 sats \ 2 replies \ @Fabs OP 9 Aug

The implementation isn't perfect on this one, as I simply wanted to see what it looked like on one of the prototypes.

view replies

0 sats \ 2 replies \ @ContraMundum 5 Aug

Bottle Holder Design

Specifications:

•	Material: 1000D Cordura
•	Length: 14.5 cm
•	Base Dimensions: 6.5 cm x 6.5 cm

Components:

1.	Main Body: Rectangular piece that wraps around the bottle.
2.	Base: Square piece that forms the bottom of the holder.
3.	Seams and Hemming: Edges to be sewn together.

Blueprint Outline

Main Body Piece:

•	Dimensions: 14.5 cm (height) x 26.0 cm (width)
•	This width includes 2 cm extra for seam allowance (1 cm on each side) and overlap for stitching.

Base Piece:

•	Dimensions: 6.5 cm x 6.5 cm square
•	Add 1 cm seam allowance around the perimeter, making it 8.5 cm x 8.5 cm total.

Steps to Assemble:

1.	Cut the Cordura Fabric:
•	Cut one rectangle of 14.5 cm x 26.0 cm for the main body.
•	Cut one square of 8.5 cm x 8.5 cm for the base.
2.	Prepare the Edges:
•	Hem the top edge of the main body piece by folding over 1 cm of fabric and stitching it down.
3.	Assemble the Base:
•	Pin the base piece to the bottom edge of the main body rectangle, right sides together.
•	Sew along the edges, leaving a 1 cm seam allowance.
4.	Form the Cylinder:
•	Bring the two short sides of the main body rectangle together, right sides facing, and sew them to form a cylinder.
5.	Finish the Seams:
•	Reinforce the seams with additional stitching if needed.

Here is a simple diagram for visualizing the pieces:

Main Body Piece:

| | | | | | | | | | | | |_________________________| |<---- 26.0 cm ---------->|

Base Piece:

| | | | | | | | |________| |<--8.5 cm-->|

0 sats \ 1 reply \ @Fabs OP 5 Aug

What's this? I can tell from the provided measurements that this ain't gonna work out...

0 sats \ 0 replies \ @ContraMundum 5 Aug

I tried. Sorry.

0 sats \ 1 reply \ @RDClark 5 Aug

Like a cloth pattern or something like gcode to print a hard box?

0 sats \ 0 replies \ @Fabs OP 5 Aug

I'd like to make a bottle holder with the above form and fit out of 500d or 1000d Cordura.
